Petroleum Tank Level Automation System in Pakistan
Advanced radar-based petroleum tank level automation and monitoring system implemented at an oil depot in Pakistan.
Lead Client
ECHO Petroleum Depot
Deployment
24 Days
Site Location
Chakri, Pakistan
Performance
99.9% Uptime
Overcoming Project Obstacles
The client was manually measuring petroleum tank levels using traditional dip methods, resulting in inaccurate readings, delayed reporting, safety risks, and inefficient inventory management.
Our Innovative Approach
Designed and deployed a fully automated tank level monitoring system using non-contact radar level transmitters integrated with PLC and live monitoring dashboard. The system provides real-time level measurement, automated data logging, high-accuracy calibration, and centralized supervision for improved operational control.
Key Implementation
- Installation of high-precision Radar Level Transmitters
- PLC-based control and automation system
- SCADA / HMI live monitoring dashboard
- Real-time tank inventory tracking
- Automated alarm and overflow protection system
- Historical data logging and reporting
- Remote monitoring capability
Implementation & Results
Technologies Used
Measurable Impact
Achieved 99.5% tank level measurement accuracy
100% elimination of manual dip measurement
Reduced human error by over 90%
Improved inventory management and reporting
Enhanced operational safety and compliance
Real-time monitoring across all storage tanks
Project Gallery
Visual documentation of our work and implementation

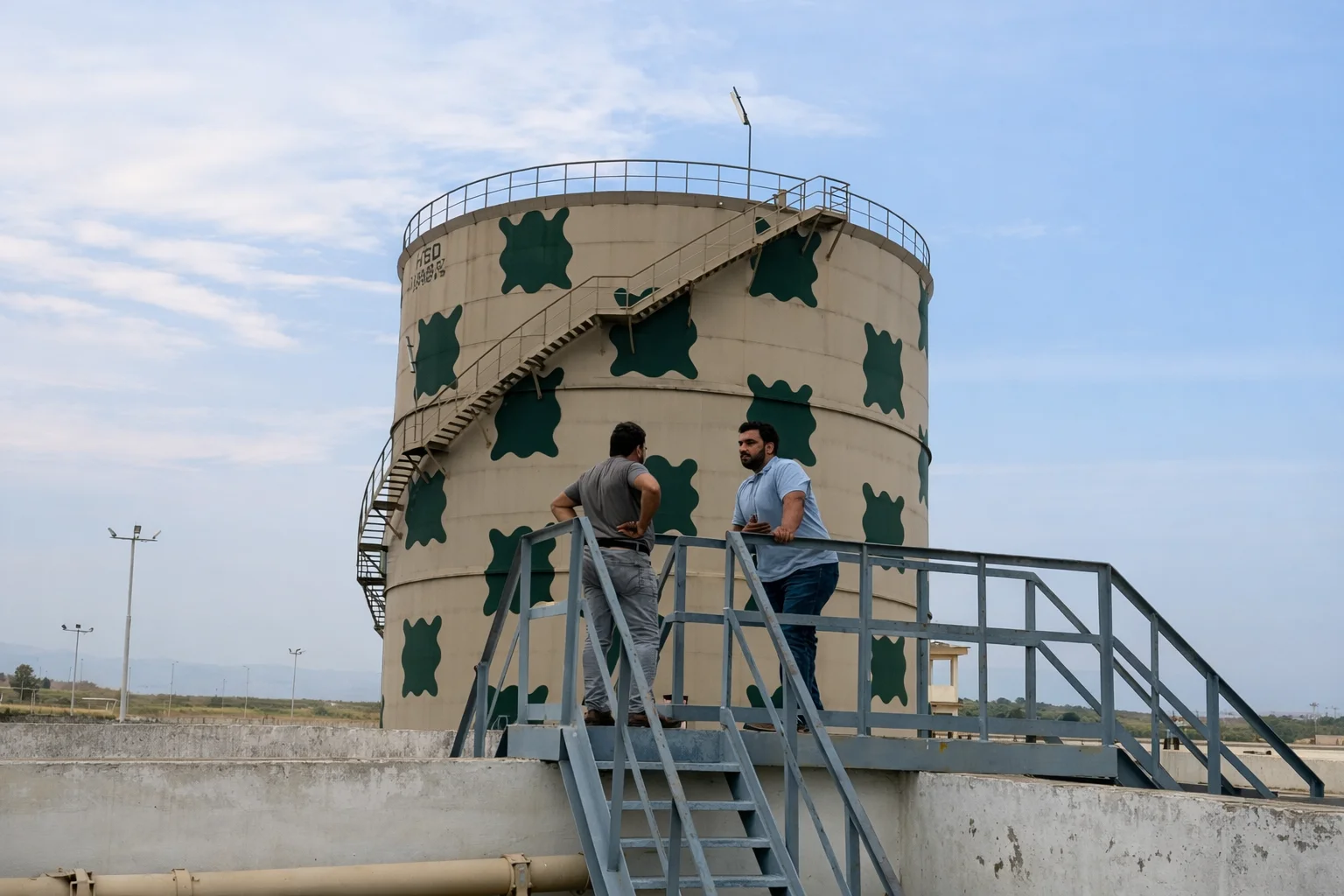

Site Overview & Challenges Analysis

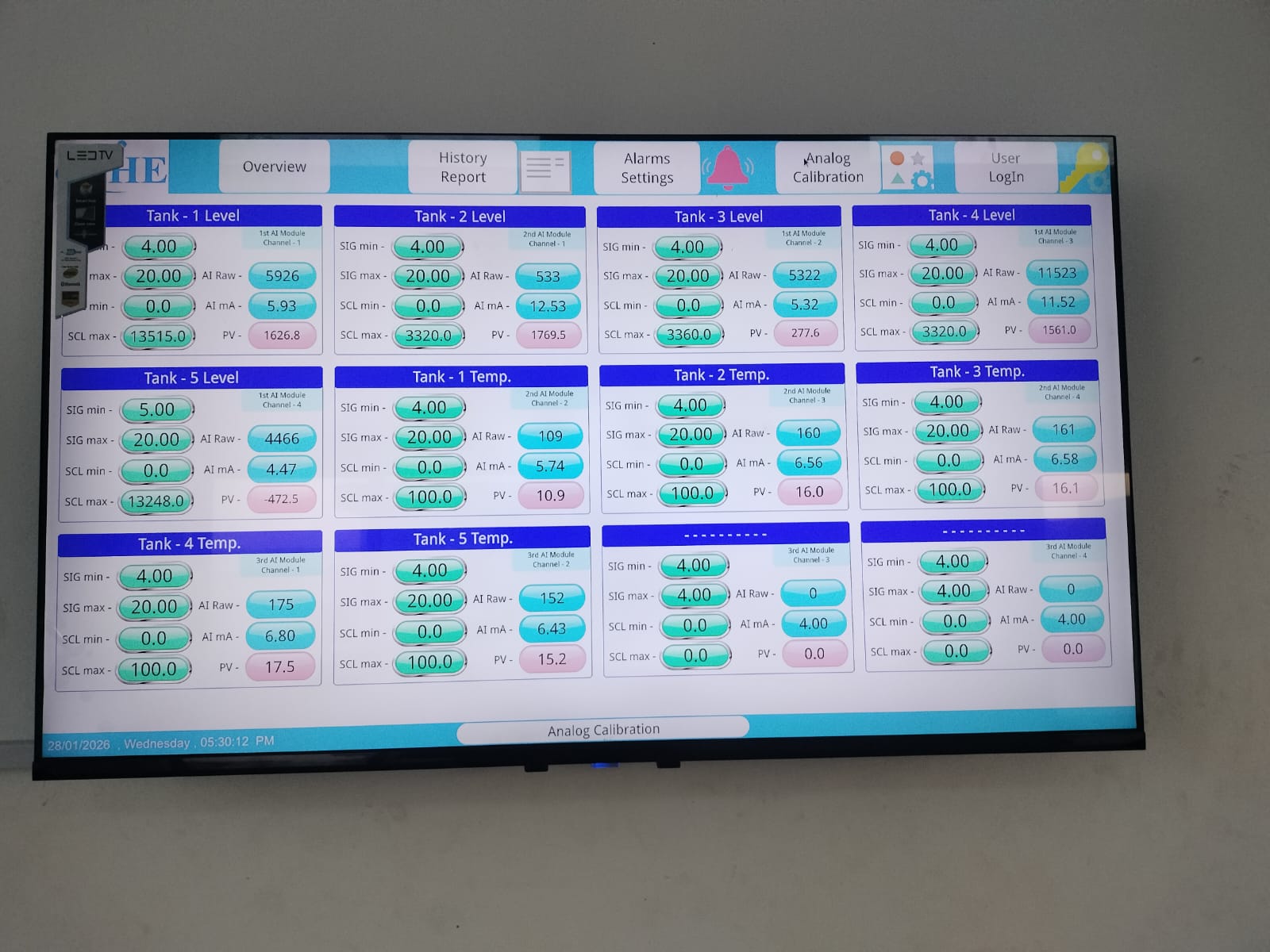

Control and Live Monitoring
Tanks Live Status Monitoring

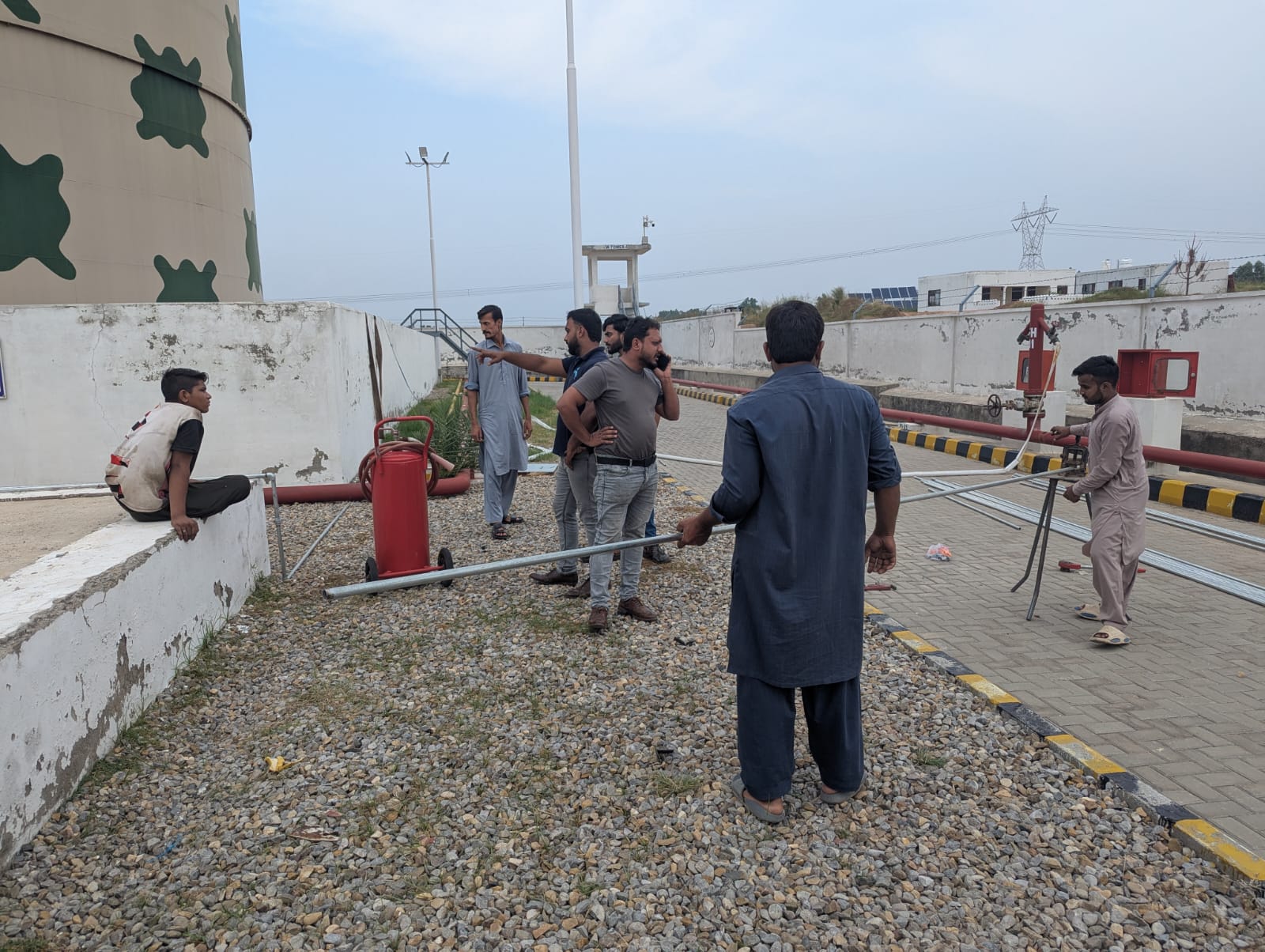

Pipe Cutting and Installation

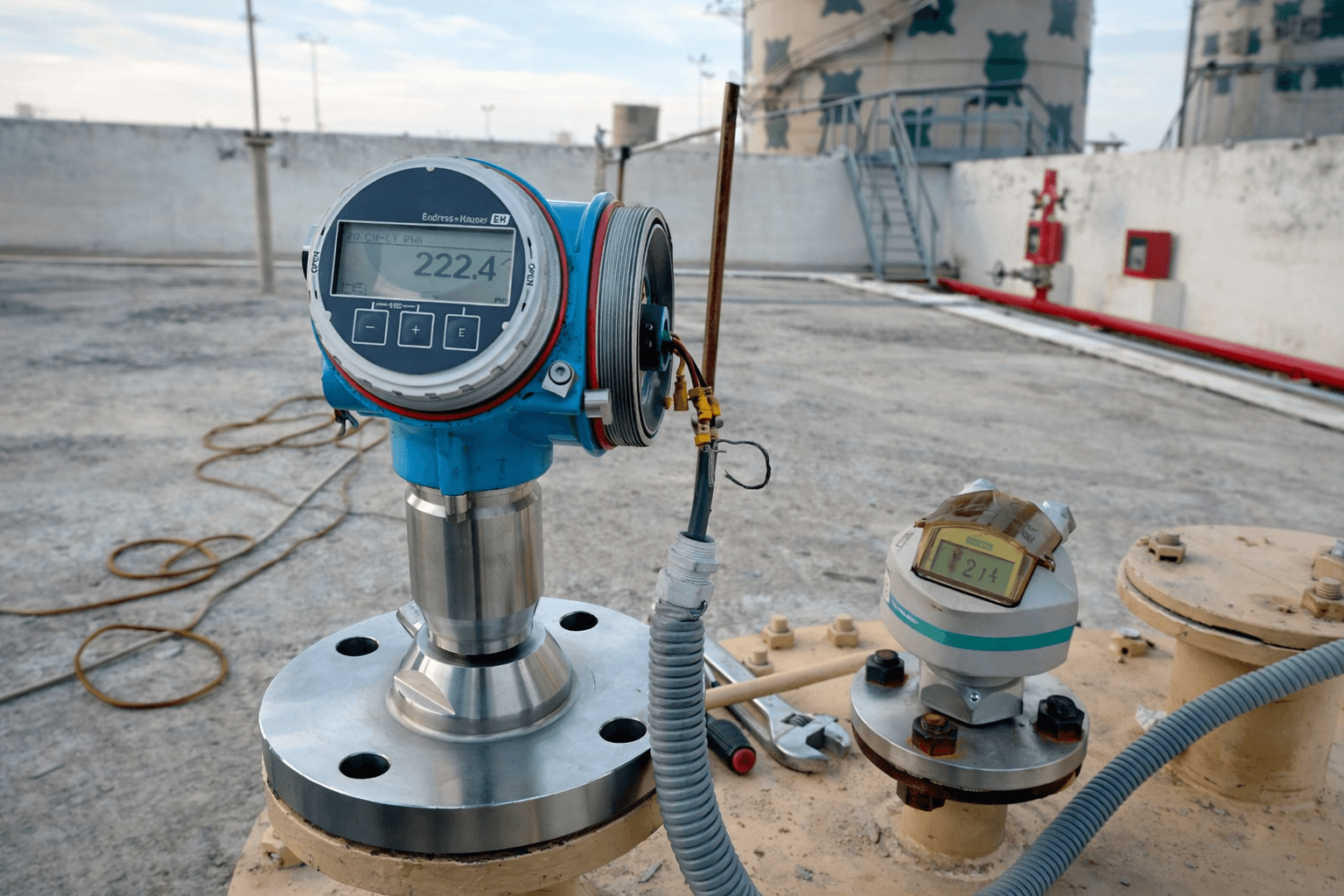

Radar Instrumentation Setup

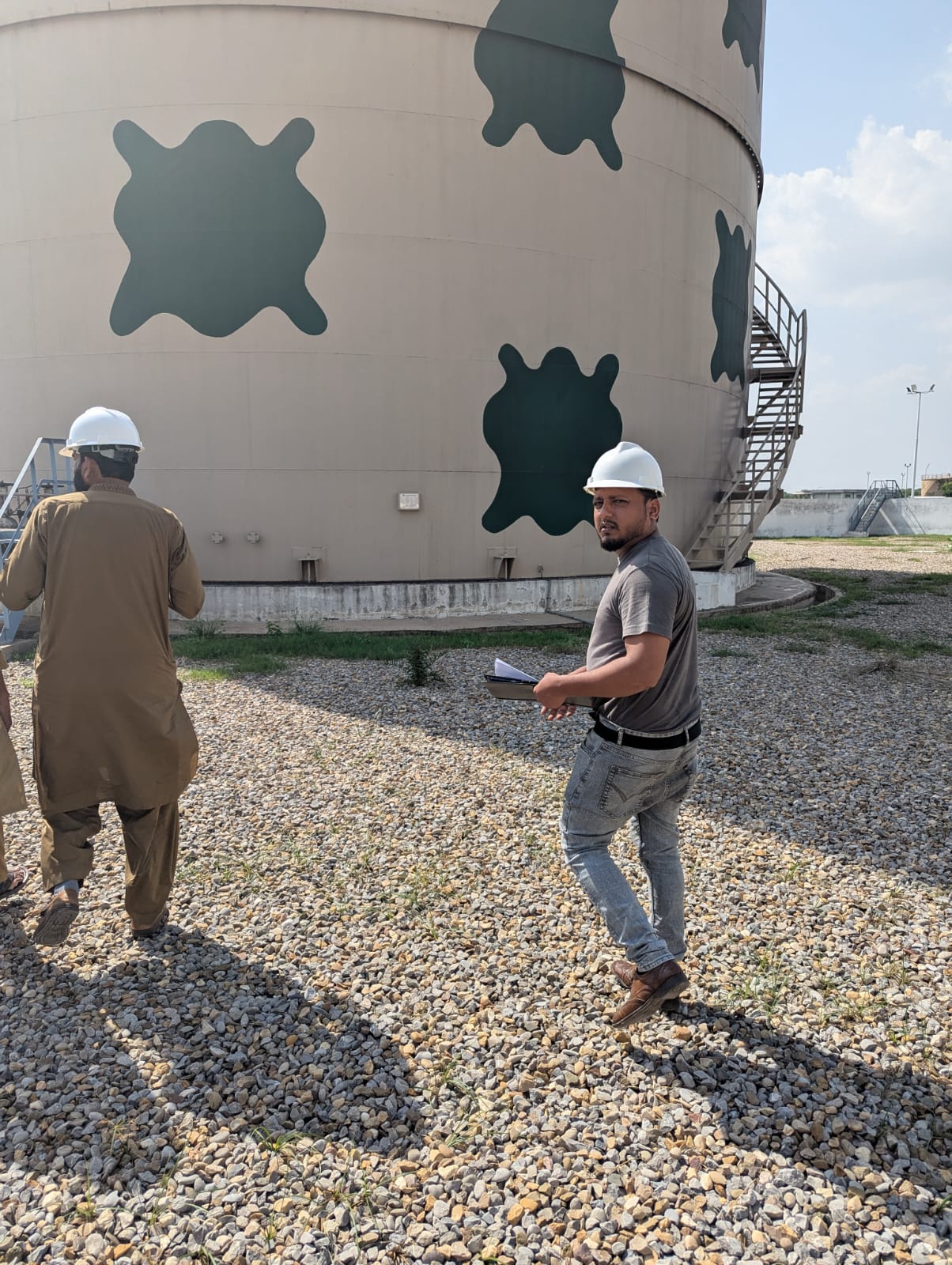

Team on Work
